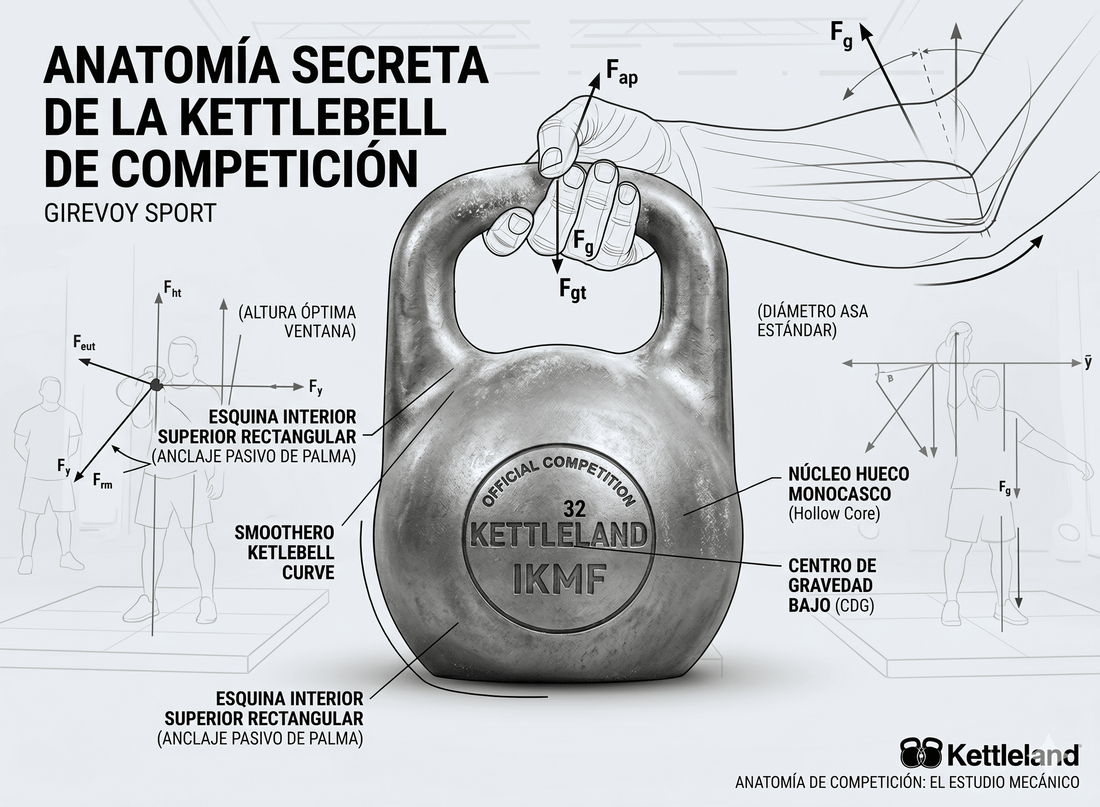

Anatomy of the Competition Kettlebell: A Biomechanical and Engineering Study
Treatise on Biomechanical Engineering: The Anatomy of the Competition Kettlebell
Kettleland's technical-metallurgical study on ballistic kinematics, epidermal friction coefficients, and the vectorial dynamics of the Hollow Core.
In the high-competition landscape of Girevoy Sport (Kettlebell Sport), a classic platform set requires an uninterrupted effort of exactly 10 minutes. During this interval, the athlete is not allowed to put the tool down or switch hands more than once (in single-hand events like the Snatch). From minute 7 onwards, under a state of severe metabolic acidosis, with heart rate operating above the anaerobic threshold and the deep finger flexors experiencing terminal ischemic fatigue, optimal performance ceases to be a factor of psychological will. At this physical breaking point, achieving valid repetitions to reach elite ranges such as Master of Sport is governed exclusively by one variable: the passive biomechanical efficiency of the binomial formed by the athlete and the kettlebell.
This treatise analytically breaks down the kinematic, geometric, and metallurgical fundamentals that govern high-performance competition molds. At Kettleland, we approach the development of sports equipment from an empirical and rigorous perspective, microscopically analyzing the laws of classical physics applied to weightlifting. The objective of this pillar documentation is to neutralize commercial myths in the sector and lay the scientific foundations of what constitutes a professional training tool, optimal for withstanding extreme volume blocks. To assimilate this ecosystem from a systems perspective, it is methodologically indispensable to first analyze the macro structural differences described in our technical guide on competition kettlebells vs. cast iron.
1. Kinematic Hierarchy: Top Inner Corner vs. Window Height
A common analytical error when evaluating the architecture of a kettlebell is to assume that all internal dimensions of the handle impact with the same intensity and simultaneously during the lifting cycle. Mathematical analysis of force vectors proves otherwise: the top inner corner of the handle and the clear window height operate in entirely independent mechanical phases and correspond to two distinct critical industrial performance thresholds:
A) Window Height as a Threshold for Anatomical Viability: Statically regulates the spatial capacity of the carpus and forearm to fit into the Rack position. If this dimension is deficient, the viability of the exercise is instantly nullified due to structural bone impingement.
B) Top Inner Corner as a Threshold for Dynamic Efficiency: Governs moments of aerial acceleration and deceleration. This is the area where kinetic energy is transferred during the transition phase (Hand Insertion), determining the shear coefficient on the lifter's epidermis.
During the critical insertion phase in the Snatch, the bell describes a parabolic trajectory and rotates around its own center of mass. If the top inner corner has a spherical or continuous arc geometry, centrifugal force continuously displaces the handle laterally across the palm, accumulating direct thermal friction on the callus line (metacarpophalangeal joints). Conversely, a profile with straight transitions passively stabilizes the horizontal plane of traction. By blocking uncontrolled lateral displacement, the load is transferred perpendicularly to the bony structure of the hand (metacarpal bones), relieving isometric tension from the forearm stabilizer muscles (pronator teres and brachioradialis) during the stable upper lockout. These geometric optimizations empirically explain why the international elite has discarded standard kettlebells in high-volume training.
2. Corner Engineering: The Passive Mechanical Brake of Straight Transitions
Fluid dynamics and kinematic behavior in the international Girevoy Sport circuit confirm that handles with continuous circular arcs impair trajectory control when working with one hand. From a mechanical engineering perspective, the handle corner's geometry determines the type of grip applicable:
- Continuous Arc Profiles (Rounded): Under the influence of ballistic pendulum forces, these surfaces force the hand to slide towards the exact center of the handle. This constant movement increases shear friction during acceleration transitions, prematurely destroying the epithelial tissue of the palm during long sets.
- Clean Transition Profiles (Defined Competition Corners): Provide a physical limit or "passive structural stop" that naturally facilitates the asymmetric competition grip (Corner Grip). Kettleland's precision engineering calibrates the intermediate transition radius micrometrically: the goal is to offer this passive mechanical brake to securely lock the hand without creating a sharp edge that concentrates excessive pressure on the index finger.
3. Tribology of the Grip Interface: Surface Roughness and Magnesium Retention
Beyond the macroscopic dimensions of the casting mold, the limiting grip fatigue in the last minutes of a set is subject to microscopic tribological phenomena at the interface between the epidermis and the bare metal of the tool. The coefficient of static friction ($\mu_s$) does not depend on brute gripping force, but on the micro-texture of the handle to retain homogeneous layers of magnesium carbonate ($MgCO_3$) without saturation or cracking.
Industrial galvanic treatments, chrome finishes, or glossy plastic paint layers seal the natural pores of the steel, preventing the mechanical anchoring of magnesium. When sweat interacts with an impermeable handle, the fluid acts as a hydraulic lubricant that breaks adhesion, inducing critical slippage that forces a reflexive overactivation of the finger flexors (flexor digitorum profundus and superficialis). For this reason, at Kettleland, we apply pressure-controlled micro-shot peening processes to our handles. This technique generates a controlled surface roughness with microscopic valleys and peaks that act as a passive magnet for high-density sports magnesium, preserving a constant and predictable coefficient of friction throughout the entire set.
Regulating this micro-texture is vital to prevent deep shear tearing of the skin. To analyze the metallurgical physics of these surface finishes in depth, you can examine our monographic report on why the finish of a polished handle makes critical differences in athletic performance.
4. Length of the Upper Flat Section: Linear Trajectory vs. Efficiency in Rack Position
The exact linear extension of the handle's upper straight section defines the competitive specialization of the kettlebell. An extended flat section maximizes linear stability in the Snatch, reducing collateral transverse forces. However, in the double-bell discipline par excellence, the Long Cycle (Jerk + Clean), a profile that transitions earlier to the lateral slopes (subtly trapezoidal geometry) restricts the horizontal free play of the hands.
This subtle angulation mechanically guides the carpus to fit into the exact passive 45° angle characteristic of the Rack position. This allows the weight of the bell to be directly discharged onto the iliac crest through the alignment of the elbows with the torso, eliminating isometric energy expenditure in the anterior deltoid and rotator cuff, thus optimizing the active rest phase between repetitions.
5. Interior Window Height: The Limit of Real Anthropometry
Kettleland's development laboratories have analyzed a recurring contradiction in industrial fitness design: the theoretical hypothesis that reducing the clear window height optimizes performance by bringing the center of mass closer to the forearm's axis. Field tests with weightlifters show that radically reducing this dimension (e.g., to 55 mm) proves dysfunctional for the vast majority of anatomical phenotypes.
The reason is strictly anthropometric. When inserting the hand at the biomechanical 45° angle, the transverse diameter of the carpus, plus the thickness of competitive wristbands, requires a minimum vertical clear span. If the height is insufficient, the arm becomes jammed under pressure between the steel sphere and the upper arch of the handle, nullifying the neutral wrist position and forcing a compensatory palmar flexion that saturates the forearm's flexor compartment within minutes. High-competition data indicates that the optimal dimension to ensure anatomical clearance without penalizing the lever arm rigidly falls within the range of 58 mm to 60 mm of clear interior height.
6. Transverse Window Width: Kinematic Control of Lateral Inertia
Pain at the outer base of the knuckles during fast ballistic transition phases (Drop and Catch phases) is directly linked to the interior horizontal width of the window. The laws of classical dynamics differentiate two radically opposing behaviors:
- Wide Horizontal Windows (Traditional Fitness): Ambiguously designed to accommodate two-hand grips. They generate excessive transverse slack that allows the hand to oscillate freely sideways within the handle. This freedom introduces oblique and unpredictable force vectors, causing the metal horns to collide with the bony structures of the outer knuckles during abrupt decelerations.
- Tight Competition Windows (Standard 120 mm): Drastically limit kinematic degrees of freedom on the horizontal axis. By precisely conforming to the morphological width of the chalked hand, transverse play is completely eliminated. All kinetic energy is displaced exclusively in a pure vertical plane, dissipating lateral bony micro-impacts and protecting hand integrity.
7. Mass Distribution Metallurgy: The Dynamic Secret of the Hollow Core
International federations require all competition kettlebells to exhibit a rigorously identical exterior volume (constant spherical diameter of 216 mm) regardless of whether the bell is 8 kg or 48 kg. The great challenge of metallurgical engineering is to calibrate the dynamic response of the center of gravity of the piece while maintaining unalterable external spatial dimensions and completely foregoing the use of loose artificial fillers inside (such as lead, shot, or sand), which shift with impacts and unbalance the ballistic trajectory.
Our technical division solves this challenge by applying advanced technology of monoblock solid steel casting with a hollow core. By cooling molten steel over a calibrated internal matrix mold, the final weight of the piece is determined by micrometrically precise modifications to the thickness of the internal walls of the sphere. Kettleland's high-performance molds are designed to proportionally concentrate more material density in the lower hemispherical base compared to the upper shoulders of the bell.
This asymmetrical distribution decentralizes the original center of gravity of the sphere, favorably altering the rotational moment of inertia ($I = \sum m_i r_i^2$). When executing the pendulum, this mass asymmetry acts as a passive gyroscopic stabilizer, causing the kettlebell to perform a controlled auto-rotation in the air at the end of the ascension phase, automatically smoothing wrist insertion. To understand the metallurgical physics of this internal hollowing compared to commercial filled models in detail, we advise you to study our specific research on why the hollow vs. chromed filled kettlebell is the only valid option for sports performance.
8. Biomechanical Engineering Matrix: Kettleland Technical Analysis Parameters
As a synthesis of the analyzed kinematic laws and the morphological tolerances evaluated on the platform, Kettleland's engineering division operates under the following regulatory matrix for casting premium competition tools:
| Anatomical Variable | Nominal Technical Dimension | Maximum Tolerance | Primary Functional Mechanics |
|---|---|---|---|
| Window Height | 58.0 mm | ± 2.0 mm | Reduces the lever arm on the forearm, allowing carpal insertion with high-competition wristbands. |
| Window Width | 120.0 mm | ± 2.0 mm | Eliminates transverse degrees of freedom, aligning ballistic inertia in a pure vertical kinematic plane. |
| Handle Geometry | Straight transition profile | In mold | Acts as a passive mechanical brake (Corner Grip), stabilizing the palm and mitigating thermal shearing. |
| Handle-Bell Connection | Curved relief fillet | In mold | Dissipates structural stress concentration and distributes pressure in the carpal Rack zone. |
| Handle Diameter | 34.0 mm | ± 1.0 mm | Constant regulatory international standard. Optimizes force transmission without saturating finger flexors. |
| Core Structure | Hollow Monoblock | ± 0.1% weight | Decentralizes the center of gravity towards the lower base, generating gyroscopic stability and passive auto-rotation in flight. |
| Bell Diameter | 216.0 mm | ± 2.0 mm | Constant regulatory volume independent of weight, ensuring the immutability of lifting technique. |
9. Analytical Conclusion: The Interaction of Forces on the Platform
The systemic analysis of this treatise demonstrates that the real performance of a competition tool cannot be evaluated through variables analyzed in isolation. While the macro-dimensions of the window define the primary threshold of the lifter's anatomical viability, the consistency of repetitions under extreme fatigue is dictated by a synchronization of passive engineering: the interaction of a solid steel hollow core that gyroscopically stabilizes the aerial trajectory of the bell, coordinated with a straight-cornered handle profile that functions as a mechanical structural stop, fixing the hand without consuming the athlete's metabolic grip resources.
At Kettleland, we reject commercial simplifications. Analyzing the thermomechanical behavior of metals down to the millimeter and studying the actual morphological ergonomics of geometric transitions represents the only scientific path to maximize the potential of athletes exposed to the most demanding competitive conditions in the world of strength.
Frequently Asked Questions About Competition Kettlebell Geometry
Why can a 55 mm window height cause problems in competition?
A 55 mm window is excessively small for the average morphological hand percentile. When inserting the hand at the regulatory 45° angle, the volume of the carpus and forearm (especially when wearing competitive wristbands) is pressed under pressure against the upper arch of the handle. This prevents neutral bone alignment of the wrist, compromising venous return and forcing severe palmar flexion that immediately exhausts the forearms.
What advantages do straight interior corners offer compared to arched designs?
Corners with straight transitions act as a passive mechanical brake. They prevent the handle from continuously sliding laterally across the palm during the swinging phases of loading, ensuring a stable Corner Grip (asymmetric grip). Continuous arched designs displace the hand uninterruptedly, forcing the neuromuscular system to make constant isometric micro-corrections that trigger finger fatigue.
How does a narrow 120 mm window influence impacts on the knuckles?
A tight transverse width of exactly 120 mm eliminates degrees of freedom of movement on the horizontal axis. By justly limiting the lateral play of the hand within the window, the inertia of the sphere moves exclusively in a pure vertical kinematic plane, eradicating oblique vectors and mitigating micro-impacts from the iron hitting the outer knuckles during the Drop.
What does it mean for a competition kettlebell to have Hollow Core technology?
It means it is manufactured using single-piece monoblock casting of solid steel with a completely empty inner core, completely dispensing with secondary welds or artificial fillings of loose materials (such as sand or lead). The exact calibration of the load is executed by dosing the thickness of the internal walls of the metal, guaranteeing a homogeneous and unalterable ballistic balance over the years.
IKMF Special Edition: Competition Geometry Taken to Advanced Loads
The principles analyzed in this treatise —inner window height, usable handle width, asymmetric mass distribution, hollow-core unibody, surface roughness, and ballistic stability— constitute the engineering basis of Kettleland's IKMF Special Edition Kettlebells collection, a range specifically developed for athletes who demand a consistent competition tool from basic technique to extreme overload.
Within this official line, high-end weights allow for specific strength work and progressive adaptation above conventional market standards: 36 kg as an advanced transition link, 40 kg as a high-performance reference, 44 kg as extreme overload, and 48 kg as the most unique engineering piece in the series.
Special Mention: IKMF Special Edition 48 kg Kettlebell
The IKMF Special Edition 48 kg Kettlebell represents the absolute load limit of the range: a rare collector's item in Europe, designed for exceptionally strong athletes who require overtraining blocks, static rack holds, overhead holds, heavy cleans, heavy jerks, and the development of specific maximum strength while maintaining regulatory competition dimensions intact.
